Technicial Specifications

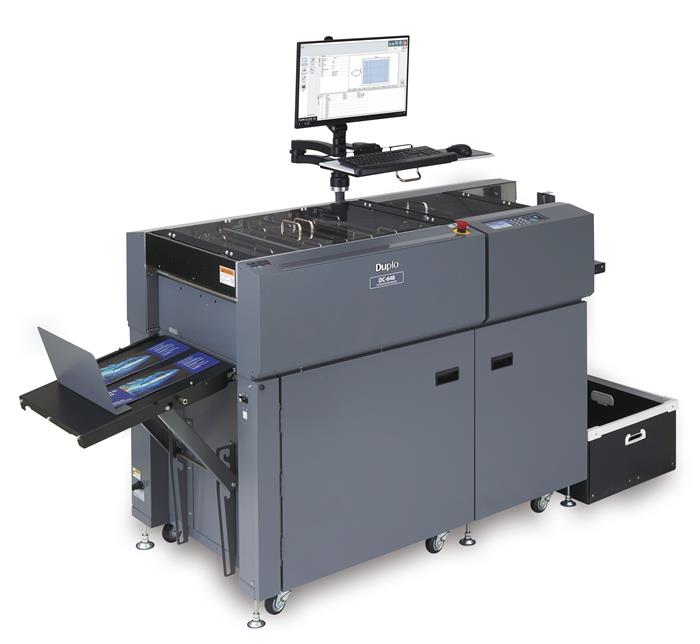

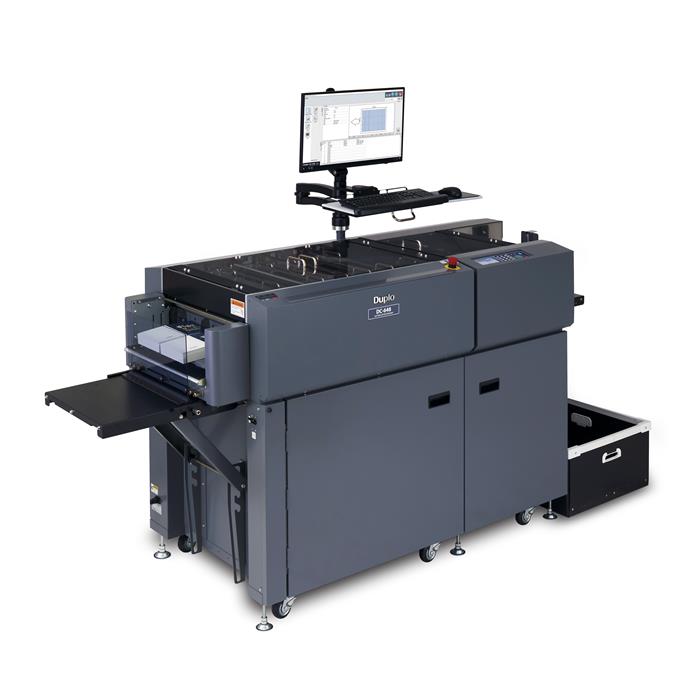

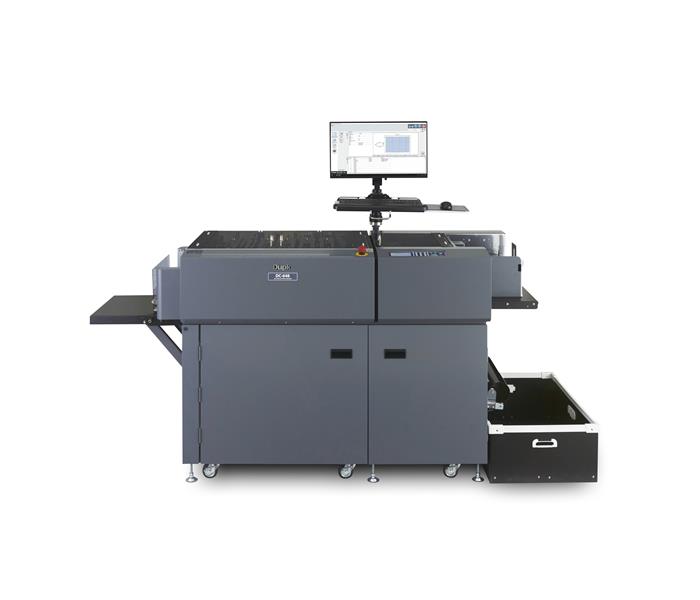

Product Code DUPLO DC-648

Product Group Print Finishing

Feeding Type Automatic

Connection Type

Slitter/Cutter/Creaser The DC-648 delivers new levels of speed, durability, and versatility, together with increased automation, ease of use and connectivity into the user’s workflow, creating efficiency that brings multiple benefits across the customer’s business. Industry 4.0-enabled cutting solution engineered to enhance real productivity

• High durability cutter
• Camera for fast mark reading ensures negligible impact on production speeds
• Export and import job layouts with pre-press imposition

Typical speeds, SRA3 per minute:
• 1 x A3 Leaflet 35.3
• 4 x Greetings cards 25.5
• 8 x A6 Postcards 20
• 21 x Business cards 12.2

SPECIFICATIONS Speed (SRA3)
21-up Business Cards*1
12.2 sheets/min 15,372 cards/hr

4-up x A6 Greeting Cards*1
25.5 sheets/min 6,120 cards/hr

8-up x A6 Postcards *1
20 sheets/min 9,600 cards/hr

1-up x A3 Brochure*1
35.3 sheets/min
2,118 brochures/hr

Max Sheet
W 370mm x L 710mm (1200mm *2)

Min Sheet
W 210mm x L 210mm

Paper Weight
110gsm to 400gsm

Min Finished Size
48mm x 49mm (28mm*3)

Tolerance
± 0.3mm business cards;
± 0.2mm on programmed position*4

Delivery Tray Capacity
150mm

Elevator Stacker Capacity
90mm

Slits
6 (8 optional)

Maximum Cuts
30

Maximum Creases
20

Crease Depth Adjustment
Automatic

Perforation (options)
Automatic positioning
Strike up/down in X & Y direction

Standard Features
Air knife, Side Air, Ultrasonic double feed detection sensor, Automatic Barcode Job Recall, Image Registration (including skew and shrinkage), Batch separation, Elevator Card Stacker, PC Controller software, PC pole mount

Power
230VAC 50/60Hz

Weight
348kg

Operation
MS Windows TM Operator GUI, plus
LCD

Memory (jobs)
250 + PC memory

Export Layout to Prepress
Yes*5

Import Layout from Prepress
Yes*5

Industry 4.0
Yes via XML export

*1 Theoretical, not allowing for reloading
*2 With optional Banner Feed Tray
*3 Extended Feature
*4 Can be more with long sheet
*5 Compatible software dependent

OPTIONS PC & PC Arm
MS Windows TM

Rotary Tool Module
Perforation, Micro-Perf, Score, Slit-Score

Cross Tool Module
Perforation, Micro-Perforation, Slit-Score

Up-Crease Module
Reversible tool, 110gsm to 400gsm

Banner Feed Tray
Maximum 1200mm sheet

Conveyor Stacker
For fixed size applications

Waste Conveyor
Not compatible with Banner Feed Tray
