Technicial Specifications

Product Code DUPLO DBM-350

Product Group Print Finishing

Feeding Type Automatic

Connection Type

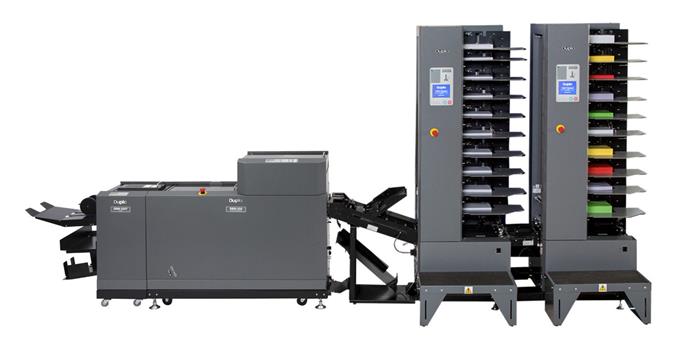

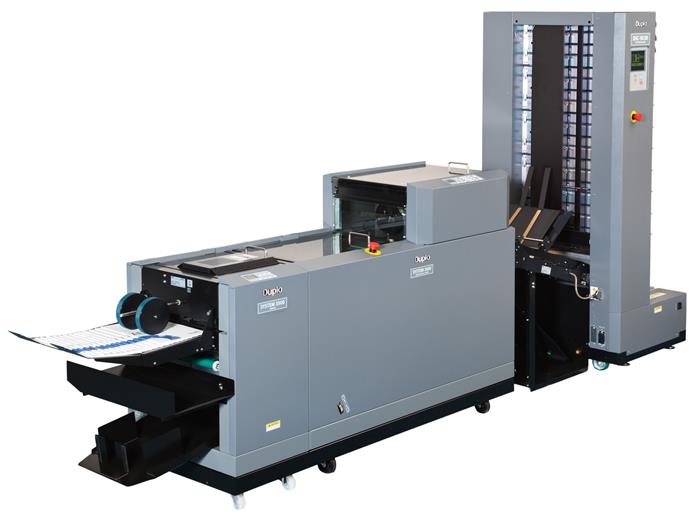

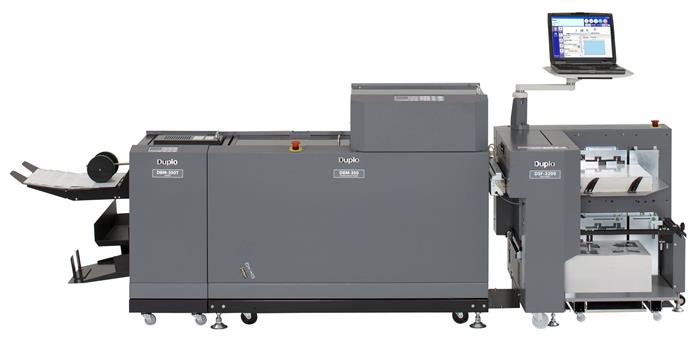

PREMIUM BOOKLET MAKING SYSTEM Duplo presents the fully automatic, premium bookletmaking solution for mid volume commercial printers and in-plants. The 350 Booklet System comprises of the DSC-10/60 collators, DBM-350 booklet maker and 350T trimmer. This system is capable of producing up to 3,000 A5 booklets per hour and collating up to 10,000 A4 sets per hour.

FEATURES & BENEFITS Versatility
• Fully automated booklet making system
• Supports print from multiple print engines
• Up to 3000 A5 books per hour
• Collating up to 10,000 sets per hour

Professional Finish
• Adjust Trim Position from 1-20 mm
• Side, Corner and Fold Staple ability
• Easy Set up in Four Steps
• Hohner staple heads
• Stitching Wire

Automated Precision
• Single Control panel
• Fully Automatic set up in 60 seconds
• Automated Job Change over 35 seconds
• 20 Job Memory
• Air management system

RECOMMENDED FOR Target Market
• Mid Range Quick printers, Copy Shops, In Plants and Digital Printer

Applications
• Corporate Reports, Catalogues, Brochures, Coupon Booklets, Yearbooks, Picture Books, Magazines, Course Work, CD Booklets, Menus, Manuals, Price lists

SELLING PROPOSITION • Modularity
• Bi Directional Running
• Block Mode
• Double Feed Detection

OPTIONS • Small Booklet Kit
• 6 Page Insert Kit
• Corner/side stitch Kit

DBM - 350 BOOKLET MAKER Sheet Size Min 148mm x 210mm Max: 320mm x 460mm
Sheet Size with corner stitch option Min. 182 mm x 257 mm Max. 215 mm x 297mm
Paper Capacity 20 sheets [Cover x 1(300gsm) + 19 sheets (81.4 gsm) equivalent]
Speed 3,000 (A5) booklets per hour
Detection Wire draw detection
Number of Stitcher Heads 2
Stitch Positions Saddle, Fold only, Corner & Side (optional)
Other Features Spine press (0-9 presses)
Programmable Memory 20 memory settings
Dimensions (L x W X H) 1820mm x 650mm x 1030mm
Power Requirements 230 V- 50Hz - 3.8 A
Weight 230kg

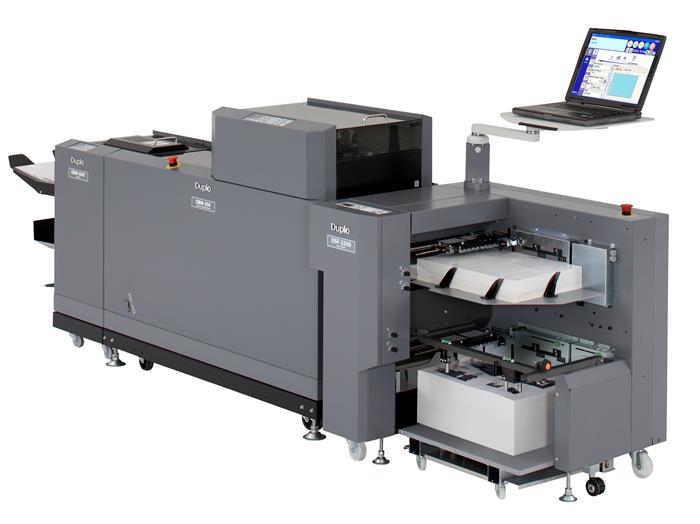

Connecting Devices Collators: DSC-10/60 & DSC- 10/20. Sheet Feeders: DSF-2200 & DC-445
Options Hohner loop stitching head; Small booklet kit;6 page insert kit; Corner/side stitch kit

DBM - 350T TRIMMER Triming Mechanism Upper and lower shearing action
Booklet Sizes Min. 105 mm x 148 mm Max. 230 mm x 320 mm
Trimmed Booklet Sizes Min. 85 mm x 148 mm Max. 230 mm x 320 mm
Trim Margin 1 to 20 mm
Speed 3000 (A5) booklets per hour
Other features Jam detectors, automatic setting exit rollers, trim scrap box full sensor, spine compression
Dimensions (L x W X H) 920 mm x 650 mm x 841 mm (inc. Belt Stacker)
Power Consumption 230 V - 50 Hz - 3.3 A
Weight 80 kg

DSC-10/60 Collator Number of Bins 10, 20, 30, 40
Paper Size Min. 120 mm x 148 mm Max. 350mm x 500mm
Paper Weight 52 – 300gsm
Bin Capacity 65mm
Detection Double feed, Misfeed, Paper jam, Bin empty
Speed Bookletmaking - up to 3000 A5 booklets per hour* Collating - up to 10,000 sets per hour*
Feed System Vacuum belt with air sheet separation
Other Features Colour touch screen control panel; left or right exit selection; block mode; waiting mode; interleaving sheet insertion; hand-marry unit
Connecting Devices DCR-ST Stacker, DBM400STR/L, DC12JR
Dimensions 630mm x 750mm x 1972mm when connected to the lift unit.
Power Consumption 230V - 50Hz - 4.5A
Net Weight 298 kg
