Technicial Specifications

Product Code DUPLO PFI BIND 2100

Product Group Print Finishing

Feeding Type Manual

Connection Type

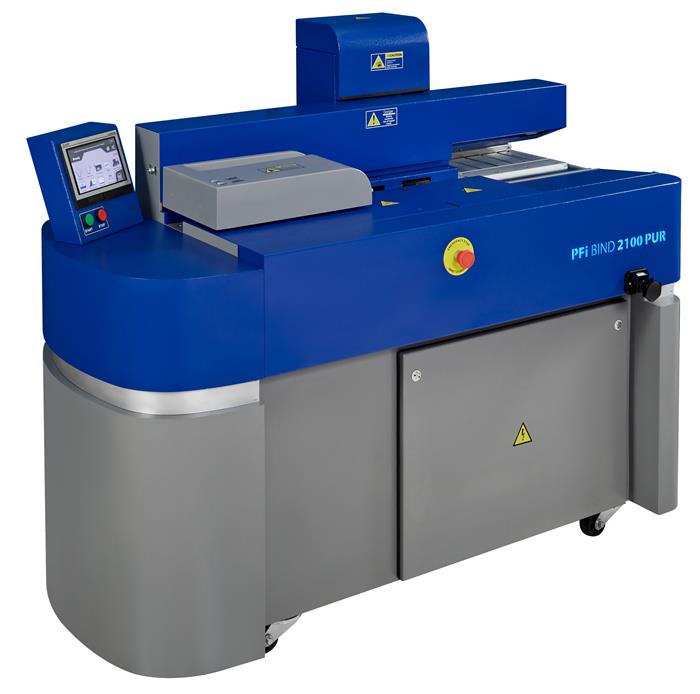

THE SIMPLEST AND MOST ADVANCED PUR BINDER Duplo’s PFi BIND 2100 PUR is the simplest and most advanced PUR binder. It is designed to make PUR binding easy to use, maintain and clean. Its intelligent gluing application combined with complete automation will enable you to bring in-house highly profitable short run, on-demand book binding jobs.

The Patented Orbital PUR System (POPS) makes the solution, the most productive and economical in its class!* The POPS makes the cleaning and maintenance process almost redundant resulting in savings of PUR glue, wax and labour costs.

RECOMMENDED FOR • Universities, schools, design agencies, corporate in-plants, local government, copy shops, print on demand book binders and small to medium size commercial printers
• Short to medium run lengths
• Near-line to digital press

Easy to use – Minimal training required • Fully automatic set-up – It is as simple as ABC!

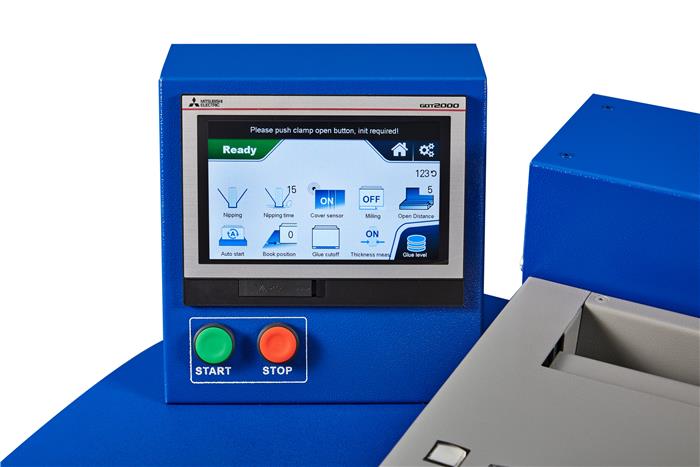

• Control Centre – Make it your own. Fully customisable

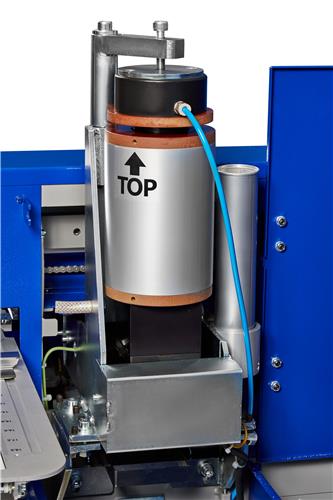

• EasyLOAD Cartridge – Makes PUR handling easier than EVA!
• 5 minutes cleaning – Thanks to Patented orbital PUR system. Easy peasy!
• Auto mode – Boost productivity with buttonless operations

Agile – Opening new revenue streams • Virtually unlimited applications – Bind almost anything
• Design flexibility – Easily align graphics and text in your cover and inners
• Application design - Round or square finish perfect bound books

Reliability – Reduce downtime • Robust and heavy duty
• Virtual Network Computing - Allows remote engineering and enhanced performance

Precision and waste reduction • Built in book block measuring system
• Precise glue application • Glue cut-offs for high quality production
• Patented Orbital PUR System (POPS)

Minimum book size 80mm x 80mm

Spine length 80mm x 330mm

Cover dimensions Minimum: 80mm x 160mm
Maximum: 340mm x 900mm

Cover thickness 80gsm - 300gsm

Spine thickness 1mm - 40mm

Cycling speed 290

Glue application Spine - PUR Side - PUR

Power supply Single phase 230 V 50 Hz, 12A

Net weight 380 kgs / 836 lbs

Dimensions of the machine (LxWxH) 1442mm x 750mm x 1260mm
