Technicial Specifications

Product Code EFI Pro 30h

Product Group Wide Format Printers

Printing Technology Inkjet

Color Capability Colour

Double Sided Printing N/A

Fax N/A

Copy N/A

Scan N/A

Smart Printer Available

Feeding Type Manual, Automatic, Roll to Roll, Flatbed, Tray, Hybrid

Connection Type Ethernet, Wi-Fi, Mobile

Compatible Softwares Print Management, WorkFlow Software, LPM - Lidya Print Management

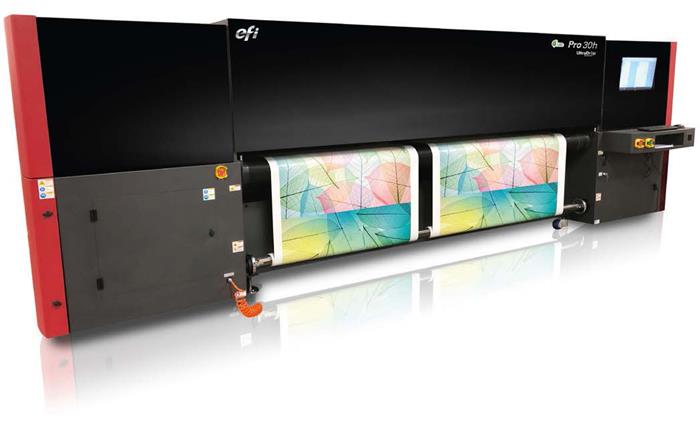

Wide capabilities that give you a competitive edge With the EFI Pro 30h hybrid printer, you can upgrade or add board and roll-to-roll print jobs to your wide format capabilities. Four colors plus white standard for those high value prints. EFI UltraDrop™ Technology 7pL grayscale printing. Resolution up to 1200 dpi. A magnetic linear drive for better drop placement and a greater color gamut. It all adds up to exceptional print quality that will set you apart from your competition.

Applications:
• Day/Night backlit graphics
• Interior decoration
• Retail signage
• Outdoor signage
• Wall coverings
• Window graphics

Wide versatility that opens up new opportunities The powerful combination of EFI’s hybrid and LED curing technology will not only help you meet the growing demands for higher quality with quicker turnaround times, but also offer you the ability to print on new, unique substrates – opening doors to more applications and unique, creative opportunities.

Wide productivity that keeps the jobs moving Take on more jobs and keep them moving with productivity up to 2,477 ft2 (230 m2) per hour. The Continuous Board feature allows you to maximize the printer’s full production speeds with large boards or multiple small boards . Change over from rigid to flexible printing is fast and easy, and the Pro 30h features dual roll printing for even more throughput.

Media/Handling • Maximum printable width: 126 in (320 cm)
• Maximum media thickness: 2 in (5.08 cm)
• Six-zone, user-selectable vacuum system
• Maximum media weight on table: 200 lbs (90.7 kg)
• Maximum roll weight: 440 lbs (200 kg)
• Maximum roll diameter: 12 in (30.5 cm)

Productivity • Express mode maximum speed 2,477 ft2/hr (230 m2/hr)
• White printing at one-half CMYK speeds

File Formats All popular desktop files formats, including Adobe® PostScript® 3™, EPS, TIFF, PDF, and RGB/CMYK

Environmental Considerations • Temperature: 68–86 °F (20–30 °C)
• Humidity: 40%–80% (noncondensing)
• Weight: Approximately 6,835 lbs (3100 kg) uncrated
• Dimensions (W x D x H): 227 in x 76 in x 77 in (575 cm x 192 cm x 194 cm)
• Electrical: 200–240VAC, single phase, 50/60 Hz 32A

EFI ProGraphics Series Inks • 5-liter containers
• Twelve-month shelf life

EFI Fiery Digital Front End Ships with an EFI Fiery proServer Core digital front end
