Technicial Specifications

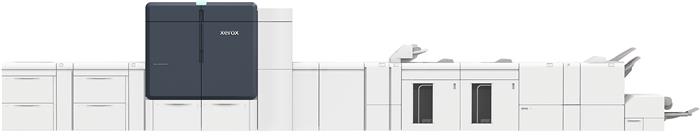

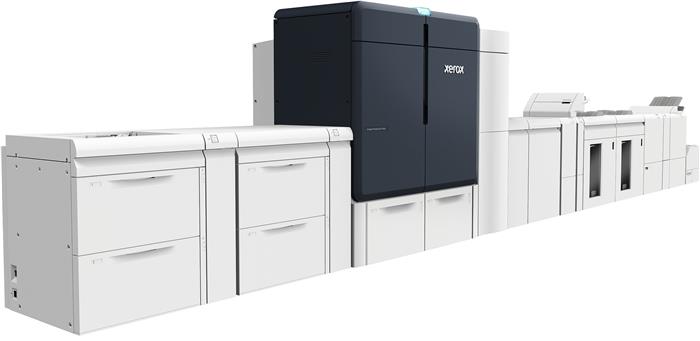

Product Code Xerox Iridesse

Product Group Digital Presses

Printing Technology Laser

Color Capability Colour

Print Quality Laser

Double Sided Printing Auto

Fax N/A

Copy N/A

Scan N/A

Smart Printer Available

Feeding Type Manual, Automatic, Flatbed, Tray

Connection Type USB, Ethernet, Wi-Fi, Mobile

Compatible Softwares Print Management, WorkFlow Software, ConnectKey, Xerox Mobility, LPM - Lidya Print Management

Rated speed 120 ppm (8.5" x 11"/A4), 52-400 gsm

Resolution Ultra HD Resolution RIP 1200 x 1200 dpi x 10-bit Print 2400 x 2400 dpi x 1 bit

Recommended average monthly volume 225,000 - 475,000 impressions per month

Duty cycle Up to 2,250,000 impressions per month

Throughput 120 ppm (8.5 x 11"/A4 letter), all weights, 52–400 gsm (35 lb Text to 145 lb Cover)

Line Screens Halftone Screens 150, 175, 200, 300 and 600 Clustered Dot 150, 200 Rotated Line Screen Stochastic

Standard Capabilities 4, 5 and 6 production color printing

Optional Capabilities Specialty Dry Inks: White, Clear, Silver, Gold, and Fluorescent Pink. Add one or two Specialty Dry Ink stations in addition to the standard 4 for CMYK, for a total of up to 6 Optional Media Expansion Low Gloss Clear Dry Ink High-capacity feeding, stacking, and finishing Optional Xerox XLS Automatic Feeding Kit for productive feeding of XLS stocks Inline finishing of landscape letter/A4 full bleed booklets on XLS sheets with Plockmatic PowerSquare 160 or C.P. Bourg Booklet Maker (BM-e) finishers

Printed Sides Simplex or duplex

MICR No

Color Technology Color FLX Technology (CMYK, White, Clear, Fluorescent Pink, Metallics and Mixed Metallics enhancements) with: Up to six inline print stations that print in a single pass, at rated speed, with spot on color-to-color registration EZ Swap for fast and easy color changes Full Width Array for color stability, accuracy, and repeatability Closed loop process controls for print run consistency

Fusing Technology Belt Roll Fuser Fuser belt refresh

Ink HD EA Toners (Cyan, Magenta, Yellow, Black) HD EA Dry Inks (White, Clear, Low Gloss Clear, Gold, Silver, and Fluorescent Pink)

Paper sources 2 Standard Trays, 2 optional Advanced High Capacity Feeders with 2 trays each, Multi-Sheet Inserter (MSI) and Inserter (post-fused) for up to eight media pick points, optional Xerox XLS Automatic Feeding Kit for productive feeding of XLS stocks

Standard paper capacity Two internal trays for 4,000 sheets

Maximum paper capacity with options 12,500 sheets

Auto Duplex Auto-Perfecting up to 400 gsm

Media Dimensions - Minimum 7.2" x 7.2" (182 mm x 182 mm) Tray inserter kit provided with optional Advanced High Capacity Feeder supports 4 x 6" (102 mm x 152 mm)

Media Dimensions - Maximum 13 x 47.24" (330 mm x 1199.9 mm)

Media Weight - Minimum 52 gsm

Media Weight - Maximum 400 gsm

Media Types Coated Papers, Uncoated Papers, Text and Cover and Specialty

High Capacity Feeder Two Internal Paper Trays with 2,000 sheets each

Optional High Capacity Feeder Available in Single or Dual combinations: Two paper trays per feeder with 2,000 sheets each and Multi-Sheet Inserter (MSI) up to 250 sheets Optional Manual Sheet Inserter (MSI): Feeds up to 250 sheets Optional Xerox XLS Automatic Feeding Kit: Productive feeding of XLS stocks for longer print runs up to 250 sheets

Inserter Xerox® Inserter (post-fused): Up to 250 sheets

Catch Tray 500 sheet capacity

High Capacity Stacker 500-sheet top tray up to 13 x 47.2" (330mm x 1.2m) 5,000-sheet offset stacking; 7.2 x 8.3" up to 13 x 19.2" (B5 LEF to SRA3) 52 - 400 gsm coated/uncoated Available in Single or Dual combinations with unload while-run capability Includes one removable cart for offline finishing. Additional carts available.

Digital Front Ends Xerox® EX-P 6 Print Server Powered by Fiery® IPDS licensed software option available for transactional customers

Electrical Requirements 208-240 VAC, 60 A
