Technicial Specifications

Product Code JWEI TB08II-3516-PM

Product Group Cutting Tables

Smart Printer Available

Feeding Type Manual, Automatic, Flatbed

Connection Type Ethernet

Compatible Softwares Print Management

X-axis synchronous dual servo drive Triple heads, multiple sets of tools freely combination.

Accurate knife setting system Automatic tool setting through pressure sensor system, precise control of the depth of the tool drop.

Automatic router bits change Automatic change of router tool head according to cutting material requirements, with relief, fine repair function.

Customizable work area Modular splice design structure, quickly customize your size.

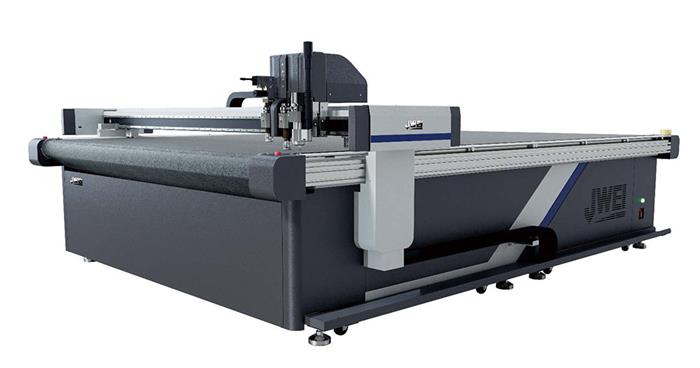

J-CUTTER TB08Ⅱ Series digital cutting tables JWEI TB08II series digital cutting tables play an important role in helping customers trimming their production to be efficient and set the bar for consistency, optimal cutting effect of finished product in advertising industry, and this is why so many customers choose it to deal with printed advertising materials including all kinds of corrugated paperboard, cardboard, grey board, KT board, PVC expansion sheet, honeycomb board, car sticker, light slice, PP gum, flex banner, flag fabric, EPE foams, EVA, PVC plate, acrylic, thick foam etc.

Features and Benefits • Framed by butt-end-joint industrial aluminum alloy profile, delivers high rigidness and base, easy for transporting and assembling, especially encounter with limit entrance.
• Modularized cutting head with up to 3 sets of tools combinations.
• Optional high power router assembly with vacuum cleaner system available: 1800w, max. 60,000RPM.
• Optional Automatic Tool Changer (ATC) for routing, trimming and polishing rigid plate like acrylic, PVC foam board, MDF, ABS and various plastic board.
• Carbon fiber reinforced gantry for intense industrial production, reliable and steady.
• Separate vacuum areas for maximum holding-down force.
• JWCS control software included as standard with friendly interface and powerful editing and optimizing functions.

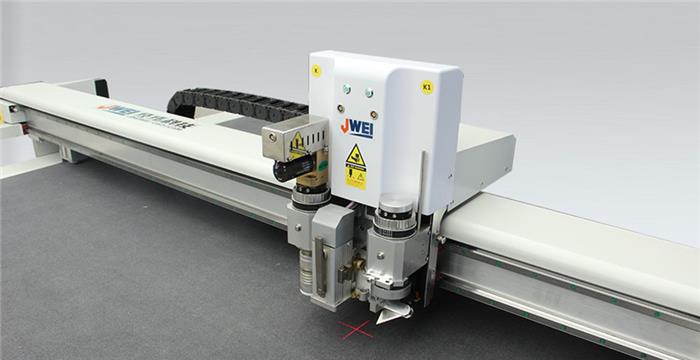

Modularised machine head Muti-functional machine head holds up to 3 sets of tools simultaneously to be speedy on process to show the versatility of JWEI T80811 series flatbed digital cutter.

Long service time Equipped with carbon fiber reinforced gantry which is reliable and stable, TB081l series flatbed digital cutter auto cutters enable high intensity industrial production handling.

Powerful JWCS control software JWCS control software with friendly interface and powerful editing and optimizing functions offers the easiest way to lean production.

Automatic tools Providing for optional a robust set of automatic and high-power tools for routing, trimming, cutting to massively streamline production workflow.

Separate vacuum suction Materials are fixed firmly through separate vacuum areas with maximum suction generated.

Industrial frame Frame using industrial aluminum alloy profile assures high rigidness of base, which is easy for shipping or assembling.

Intelligent partition system According to different size materials the partition suction is set to make the material fixed tightly on the table and the cutting more precise.

Independent operating platform More comprehensive functionality and more in line with operating requirements.

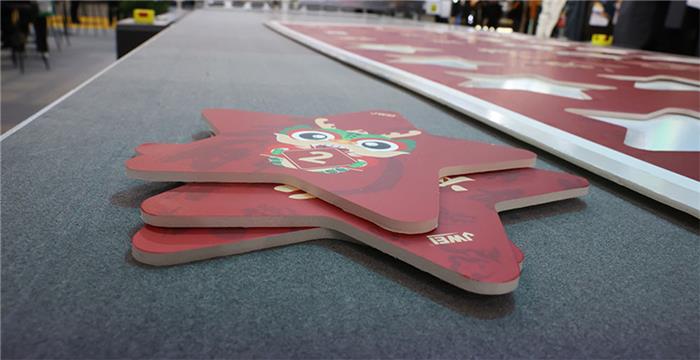

Materials TB08Ⅱ Series Customization for large format intelligent cutting solution, compatible with a wide range of materials.
• Flag fabric
• Soft membrane
• 3P cloth
• Adhesive sticker
• Reflective film
• Magnetic sticker

Tools • Electric Oscillating Tool
• Electric Foam Cutting Tool
• Electric Rotary Tool
• Kiss-cut Tool
• Router Tool
• Centered/Off-centered Drag Knife
• Press Cutting Tool
• V-CUT Tool For Honeycomb
• V-CUT Tool For Grey Board
• V-CUT Tool For Rahmen
• V-CUT Tool For Cardboard
• Creasing Wheel Tool

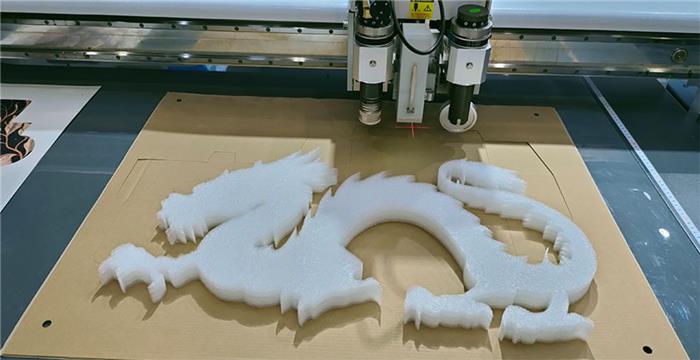

Multi-functional machine head Easy to change different tools. Oscillating thorough cutting / Kiss cutting / Creasing / Plotting / Laser positioning, and precise camera registration.

Tools Various kinds of cutting blades, different size of creasing wheels and plotting pen etc.

Safety Device Infrared sensor, responsive, safe and reliable.

Max. Cutting Speed Up to 1500mm/s Depends on different kinds of materials)

Max. Cutting Thickness Up to 50mm (Depends on different materials)

Cutting Material All kinds of corrugated paperboard, cardboard, Grey board, KT board, PVC expansion sheet, honeycomb board, car sticker, light slide, PP gum, flex banner, Flag fabric, EPE foams, EVA, PVC plate, acrylic, thick foam etc.

Repeat Precision ≤0.05mm

Rated Power 11kW

Material Fixing Method Intelligent multi-sub-area vacuum absorption

Work Command HP-GL compliant format

Numerical Control Panel English-Chinese LCD Touch screen

Transmission System Famous brand servo driver, high precise linear guide-way, gear and rack meshing transmission structure

Interface Ethernet port

Power Supply AC 380V ±10%

Effective Cutting Area 3500mm×1600mm

Dimensions (W/D/H) 4450x2380x1280mm
