Technicial Specifications

Product Code KEUNDO SQ-2513T UV

Product Group Wide Format Printers

Printing Technology Inkjet

Color Capability Colour

Double Sided Printing Manuel

Fax N/A

Copy N/A

Scan N/A

Smart Printer Available

Feeding Type Manual, Automatic, Flatbed

Connection Type USB

Compatible Softwares Print Management

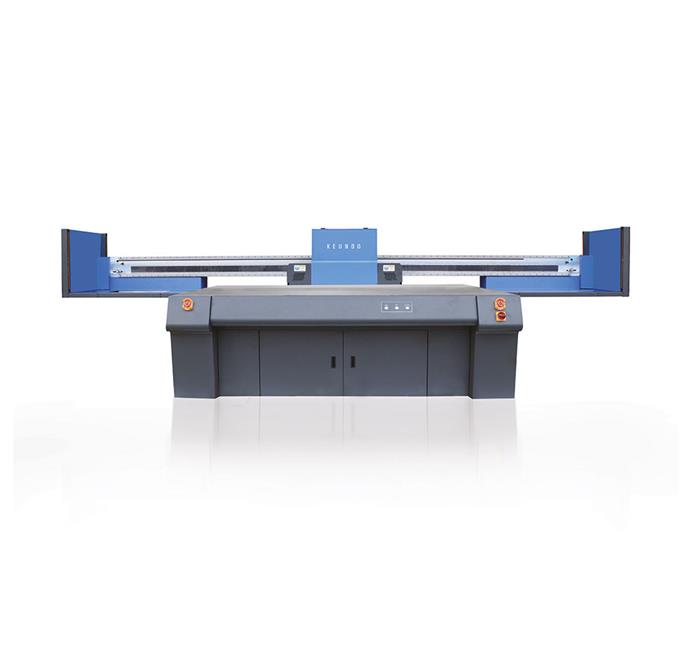

High Speed / Magnetic Levitation Technology / High End UV Flatbed Printer
Ricoh Gen6 / Epson T3200 Optional • 2400 dpi Max Resolution
• Variable Drop
• Simple Operation
• Continuous Printing

Technical Characteristics • Electromagnetic levitation printing technology, high stability magnetic encoderstrip, high precision linear motor.
• Dual Y servo motors, magnetic encoder strip.
• Supreme high precision plat-form.
• Recycle printing function, no need repeating position.
• High print quality with 3D performance and excellent touching.
• International ICC standard with profile curve adjustment function.

Features and Benefits • New EPSON T3200 has a higher production capacity and faster speed. With new variable ink dro technology, a built-in heater for greater UV incompatibility.
• Upgraded structure is stronger, ensuring stable printing during high speed. New Ricoh Gen6 has a higher production capacity and faster speed. With new variable ink drop technology, it can reach three levels of change point, and can provide SPL dot size.

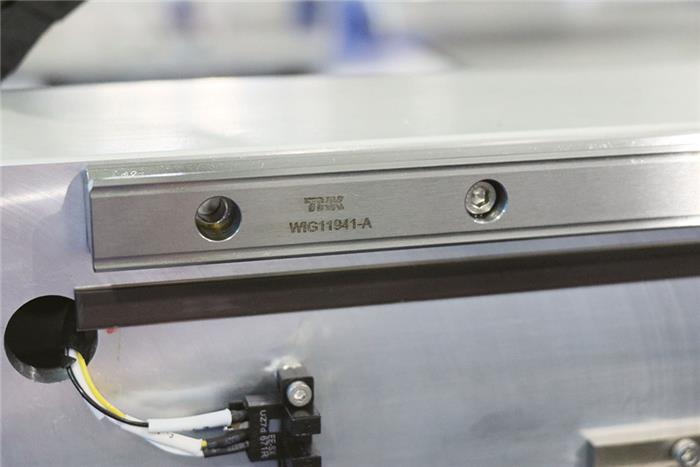

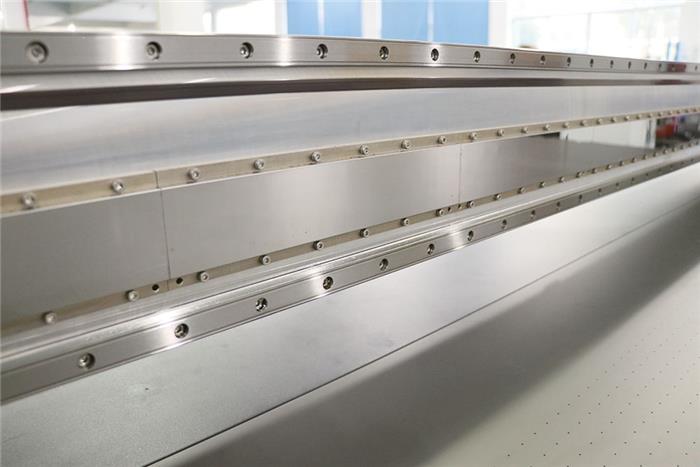

• Electromagnetic levitation printing technology, high stability magnetic encoder strip, high precision linear motor, mute THK guide rail ensures stable and high quality printing performance.

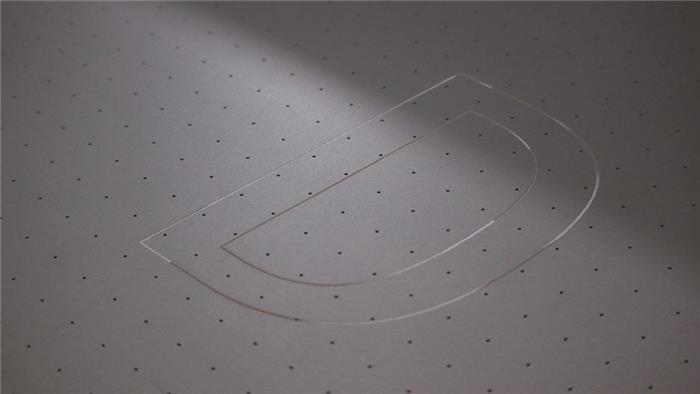

• Advanced servo motor system adapts Panasonic servo motor, brings high precision and speed. Top RIP software enables true color in output. For the printing platform has 6 divided vacuum areas, each vacuum area has independent switch control, so the customer can open or close different vacuum areas to meet different size medias, it will ensure stable vacuum suction for the media.

PRINTHEAD TYPE EPSON T3200

HEAD NUMBER 2-6 pcs optional

PRINTING SIZE (WxD) 2500x1300mm

PRINTING TECHNOLOGY Grayscale piezoelectric inkjet technology

PRINTING RESOLUTION 720x900dpi, 720x1.200dpi

PRINTING SPEED 5 pcs EPSON T3200-U3 Print Head
3PASS
CMYK : 40 sqm/h
W+CMYK+CMYK : 40 sqm/h
CMYK+W+CMYK : 25 sqm/h
4PASS
CMYK : 25 sqm/h
W+CMYK+CMYK : 25 sqm/h
CMYK+W+CMYK : 18 sqm/h

INK TYPE : LED UV Ink
COLOR : CMYK / CMYK+W / W+CMYK+Varnish

MEDIA THICKNESS 1-80mm

COLOR CONTROL ICC standard, adjustment of ICC and density

RIP Photoprint

ENVIROMENT Temperature : 20°C-35°C
Humidity : 45%-80%

POWER CONSUMPTION Printing Mode : 5 kW
Sleep Mode : 600W

PRINTER DlMENSIONS (W/D/H) (mm) 4,215 x 2,075 x 1,255

PACKING DlMENSIONS (W/D/H) (mm) 4,470 x 2,230 x 1,630

PACKING WEIGHT 1,800 kg
