Technicial Specifications

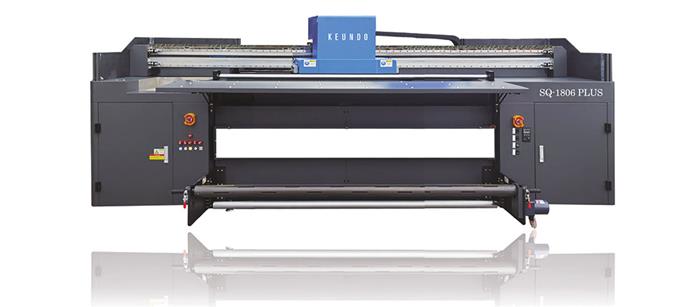

Product Code KEUNDO SQ-1806Plus

Product Group Wide Format Printers

Printing Technology Inkjet

Color Capability Colour

Double Sided Printing Manuel

Fax N/A

Copy N/A

Scan N/A

Smart Printer Available

Feeding Type Manual, Automatic, Roll to Roll, Flatbed, Hybrid

Connection Type Ethernet

Compatible Softwares Print Management

3D multi-layer texture painting industrial printer (Belt System) • 2400 dpi Max Resolution
• Variable Drop
• Simple Operation
• Continuous Printing

Features and Benefits • Material automatic height measuring system can meet the 35mm height material printing.

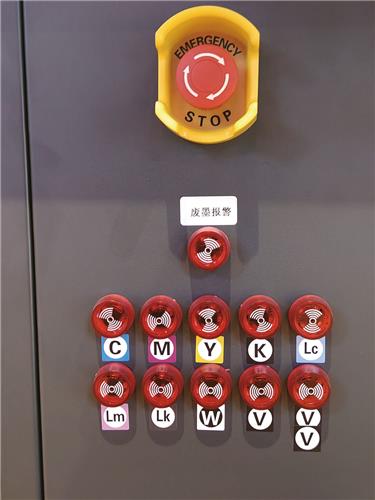

• Large ink bottle lack of ink alarm system, since Dynamic ink shortage alarm, industrial use concept.

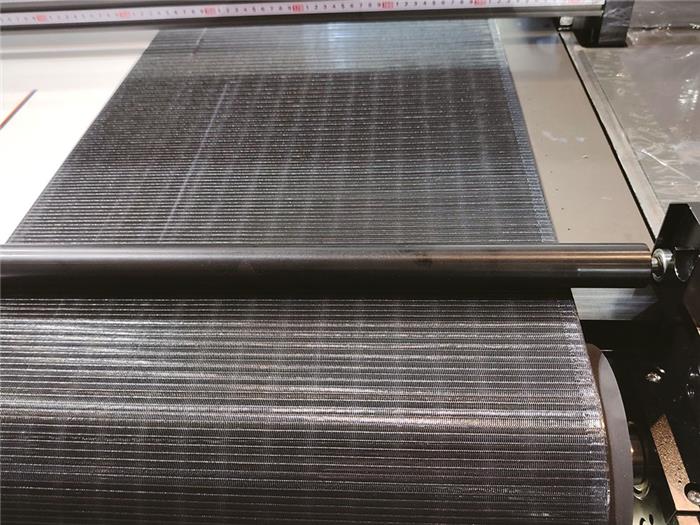

• High strength low tensile tape guide device, No deviation, no deformation, longevity long life.
• Front and rear extension support frame, perfect realization of roll plate integrated printing.

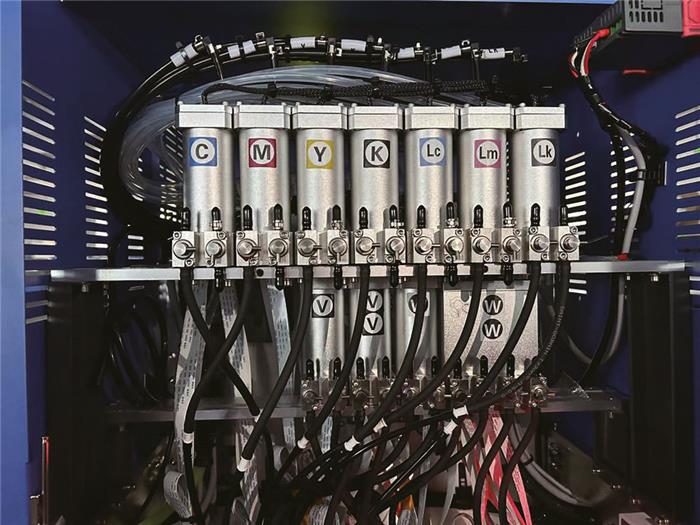

• International general ink supply system is adopted to ensure stable ink supply under the condition of high speed printing.
• THK high precision silent double guide rails effectively reduce the noise of working environment, improve the printing accuracy and stability of the car.

PRINTHEAD TYPE 6pcs Epson print heads

PRINTING TECHNOLOGY Grayscale piezoelectric inkjet technology

INK SPOT SIZE 3.5 pl variable ink drops

PRINTING WIDTH 1800mm

MEDIA WIDTH : 1850mm
THICKNESS : ≤35mm
WEIGHT : 200kg receiving drum with front and rear inflatable shaft as standard
DIAMETER: 76,2 mm (3") or 50,8 mm (2")

INK DRYING METHOD LED UV Light

INK TYPE : UV Ink
COLOR : 7 colors: CMYK/Lc/Lm/Lk+W+V1+V2
CAPACITY : 1.5liters large ink bottle (white ink strip with timed stirring)

PRINTING RESOLUTION 600/900/1200/1800/2400 dpi

INTERFACE Gigabit ethernet

POWER SUPPLY AC220V (±10%), 50/60Hz (±1%)

POWER CONSUMPTION Printing Mode : 5 kW
Sleep Mode : 600W

RIP SOFTWARE PhotoPrint, PrintFactory

WEIGHT 1,000kg

DlMENSIONS (W/D/H) (mm) Without Stand : 3,630 x 1,132 x 1,400
With Stand : 3,630 x 2,100 x 1,400

ENVIROMENT Printing Mode : Temperature : 18°C-19°C / Humidity : 30%-75%
Off Mode : Temperature : 5°C-40°C / Humidity : 20%-80%

ACCESSORIES Braket, receiving and discharging device, large ink supply system, etc.
