Technicial Specifications

Product Code KEUNDO SQ-1800HT

Product Group Wide Format Printers

Printing Technology Inkjet

Color Capability Colour

Double Sided Printing Manuel

Fax N/A

Copy N/A

Scan N/A

Smart Printer Available

Feeding Type Manual, Automatic, Roll to Roll, Flatbed, Hybrid

Connection Type USB

Compatible Softwares Print Management

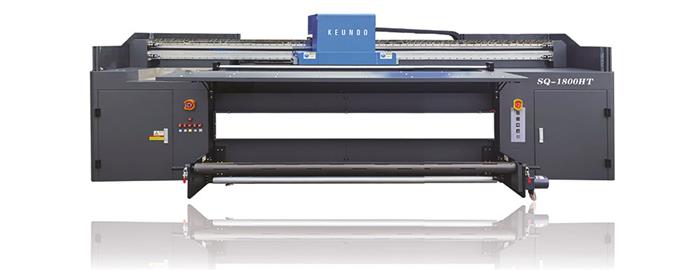

1,8m Hybrid UV Machine
Ricoh Gen5 / Gen6 or Epson T3200 Print Head Options • Internal Heating
• Variable Drop
• Simple Operation
• Continuous Printing

Technical Characteristics • Cold light LED curing with tiny temperature variation ensures high printing quality.
• Adjustable head height, laser positioning syste, and movable printing platform result in high-efficiency printing jobs.

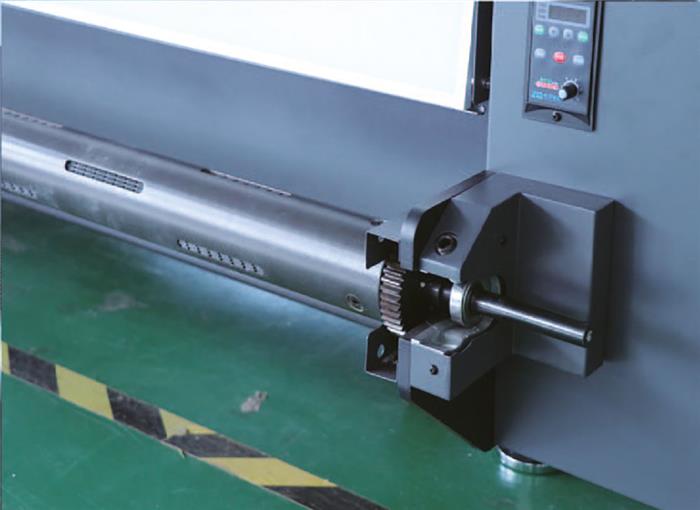

• Air-shaft take up system makes more stable paper collecting.
• Stable printing technology and ink supply system reduces maintenance cost.
• International ICC standard with profile curve adjustment function.

Features and Benefits • Integrated belt & flatbed media feeding system is competent to print both roll and rigid media. Magnetic (T3200) encoder ensure more stable print output. Air-shaft take up system makes more stable paper collecting.
• Dual mute THK guide rails ensure stability of printing and high quality printing output. The sheet media is automatically positioned, and the assistance of the front pressure bar makes the material more smooth, ensuring the accuracy of printing.
• Automatic height measurement system, adjust the distance between the baseplate and the media automatically to guarantee the best quality.
• Front LED lamp enhances the accuracy of color and makes the printing output more real.

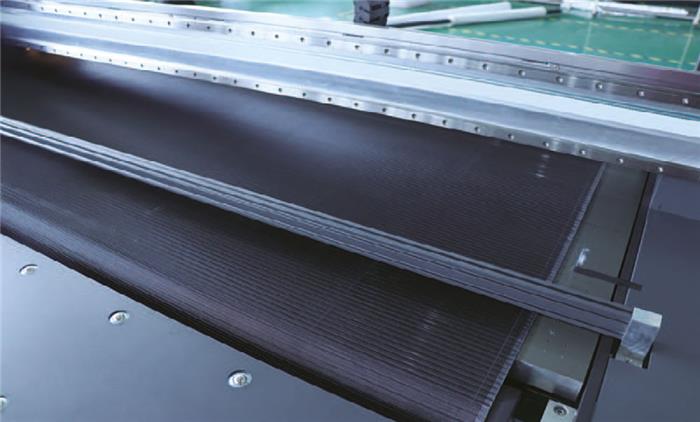

• Vacuum platform is divided into several areas to control accordingly with adjustable vacuum power. The material is always in good status during the printing process to avoid wrinkling. Bulky ink with ink alarm system represents the advanced concept of industrial application to ensure long-term stable printing

HEAD TYPE Epson T3200

HEAD NUMBER 3-4 pcs optional

PRINTING SIZE (WxD) 1800x1900 mm

PRINTING TECHNOLOGY Grayscale piezoelectric inkjet technology

PRINTING RESOLUTION 726X900dpi, 726X1200dpi

INK TYPE : LED UV Ink
COLOR : C/M/Y/K/Lc/Lm/W/Varnish
INK CAPACITY : Continual Ink Supply Systems 2.5l Ink Tank

MEDIA THICKNESS ≤29mm

COLOR CONTROL ICC standard, adjustment of ICC and density

RIP Photoprint

ENVIROMENT Temperature : 18°C-26°C
Humidity : 30%-75%

POWER CONSUMPTION Printing Mode : 5 kW
Sleep Mode : 600W

PRINTER DIMENSIONS (L/W/H) (mm) 3.704 x 1.604 x 1.588

PACKING DIMENSIONS (L/W/H) (mm) 3.850 x 1.150 x 1.800

PACKING WEIGHT 1,400 kg
