Technicial Specifications

Product Code KEUNDO SQ-3216

Product Group Superwide Printers

Printing Technology Inkjet

Color Capability Colour

Double Sided Printing Manuel

Fax N/A

Copy N/A

Scan N/A

Smart Printer Available

Feeding Type Flatbed, Tray

Connection Type USB

Compatible Softwares Print Management

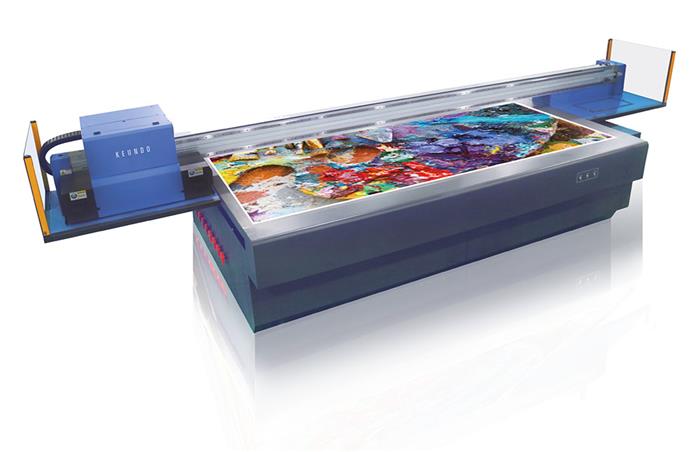

High Speed / High Precision / High End UV Flatbed Printer • 1200 dpi Max Resolution
• Variable Drop
• Simple Operation
• Continuous Printing

Technical Characteristics • Dual Y servo motors, magnetic encoder strip.
• Supreme high precision plat-form.
• Recycle printing function, no need repeating position.
• High level safety firewall, intrusion prevention design.
• High print quality with 30 performance and excellent touching.
• lnternational ICC standard with profile curve adjustment function.

HEAD TYPE Ricoh Gen5 / Ricoh Gen6

HEAD NUMBER 3-12 pcs optional

PRINTING SIZE (WxD) 3200x1600mm

PRINTING TECHNOLOGY Grayscale piezoelectric inkjet technology

PRINTING RESOLUTION V720x600dpi,V720x900dpi,V720x1200dpi etc

INK TYPE LED UV INK

PRINTING SPEED CMYK / CMYKLcLm
3 pass Quality Mode
8 x Gen5 : 58 sqm/h
8 x Gen6 : 81 sqm/h
4 pass High Quality Mode
8 x Gen5 : 51 sqm/h
8 Gen6 : 71 sqm/h

INK COLOR CMYKLcLm / W / Varnish

MEDIA THICKNESS 1-100mm

COLOR CONTROL ICC standard, adjustment of ICC and density

RIP Photoprint

ENVIROMENT Temperature : 18°C-26°C
Humidity : 30%-75%

POWER CONSUMPTION Printing Mode : 5 kW
Sleep Mode : 600W

PRINTER DIMENSIONS (L/W/H) (mm) 5,434 x 2,214 x 1,465

PACKING DIMENSIONS (L/W/H) (mm) 5,550 x 2,240 x 1,750

PACKING WEIGHT 2,200 kg
