Technicial Specifications

Product Code KEUNDO M3200-UV

Product Group Superwide Printers

Printing Technology Inkjet

Color Capability Colour

Double Sided Printing N/A

Fax N/A

Copy N/A

Scan N/A

Smart Printer Available

Feeding Type Automatic, Roll to Roll

Connection Type USB

Compatible Softwares Print Management

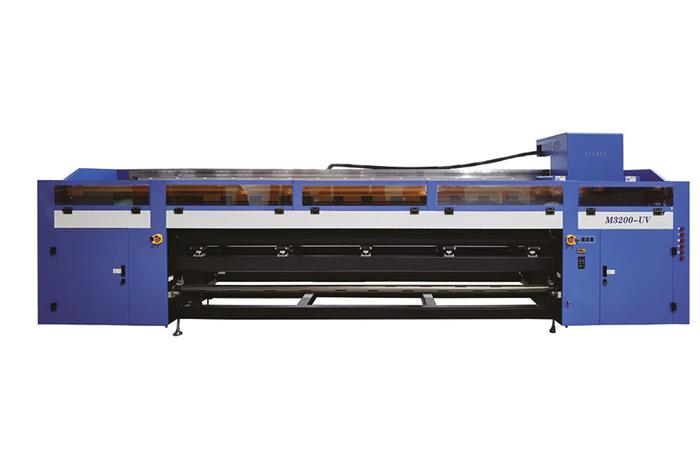

3.2m UV Roll-Roll Printer • KEUNDO UV Ink
• C/M/Y/K/LC/LM/W/Varnish
• Ricoh Gen5 / Gen6 Print Head Optional
• 1200 dpi Max Resolution
• Variable Drop
• Simple Operation
• Continuous Printing

Technical Characteristics • Use LED curing technology with temperature cooling system, extend UV lights' working life and leads to lower energy consumption.
• Standard CMYK + Lclm configuration performs wider color gamut and betler color transition from light to dark color.
• Stable media feeding system and strong feeding compensation ensures high quality printing without banding.
• Firm structure with up to 16mm thick beam, strong and high quality rubber rollers provide more stable media feeding than printers with pinch rollers.

Configuration 1. Separate capping station for each print head protects it from dirt.
2. Standard Panasonic high-power motor and motor driver ensures high precision response of movement, achieving high speed printing with excellent stability and precision even in long term printing.
3. M3200UV use industrial PLC control module to realize accurate media movement and the tension bar to increase the tension and smoothness of media, achieving high quality printing.
4. THK high quality mute guide rail.
5. Adopt high quality gear motor to control media feeding more accurately especially for soft media like soft film.
6. Optional metal encoder strip helps for more stable and accurate carriage horizontal movement.

Features and Benefits New Gen6 heads simultaneously with high speed and high precision. Print head base supports up to 12 print heads.

HEAD TYPE Ricoh Gen5 / Gen6

HEAD CONTROL Variable lnk Droplet

HEAD ARRANGEMENT Two Line Print Heads 3X2 (6pcs) Three Line Print Heads 3x3 (9pcs)

HEAD NUMBER 4-12 pcs optional

HEAD CLEANING Manual Positive and Negative Pressure Clenaning Device

RIP SOFTWARE ONYX

INK TYPE : LED UV Ink
COLOR : C/M/Y/K/LC/LM/W/Varnish
INK CAPACITY : 1 l

MEDIA TYPE : Mantle, Car Sticker, Flex etc.
MAX PRINTING WIDTH : 3200mm
TRANSMISSION : Motor High Resolution Rubber Covered Roller Transfer System

DRYING SYSTEM LED UV Light

PRINTING SPEED 6xG6
PRODUCTION MODE : 63 sqm/h
QUALITY MODE : 50 sqm/h
HIGH QUALITY MODE : 35 sqm/h

9xG6
PRODUCTION MODE : 91 sqm/h
QUALITY MODE : 67 sqm/h
HIGH QUALITY MODE : 45 sqm/h

TRANSMISSION SYSTEM USB 3.0

POWER SUPPLY AC220V (±10%), 50/60Hz

POWER CONSUMPTION 6kW

ENVIROMENT Temperature : 18°C-29°C
Humidity : 50%-80%

DlMENSIONS (W/D/H) (mm) Printer dimensions : 5,710 x 1,124 x 1,561
Packing dimensions : 5,910 x 1,150 x 2,050

WEIGHT Printer weight : 1,850 Kg
Packing weight : 2,500 Kg
